Beverage Processing System
Drink Mixing Tank
Drink mixing tank is use for beverage mixed then stir well-proportioned. It is strong in produce ability, convenient in cleaning, easy in operation.
View Product

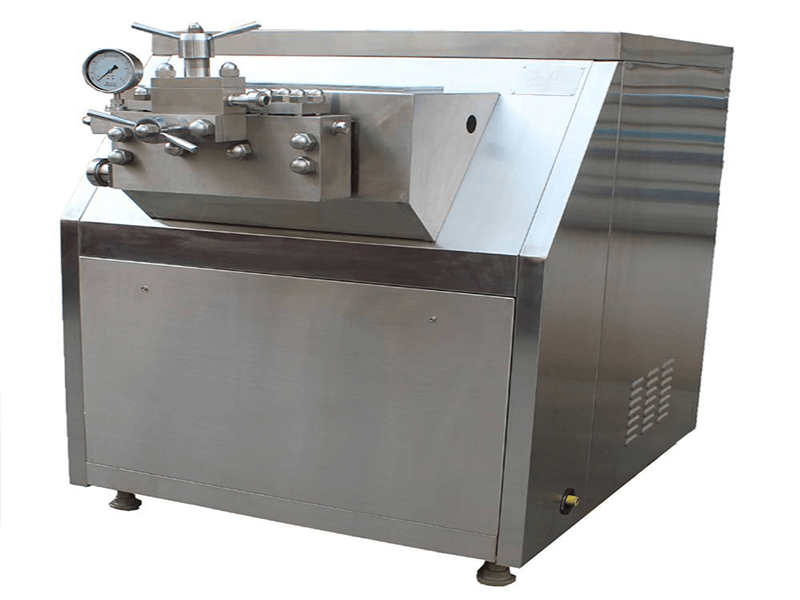

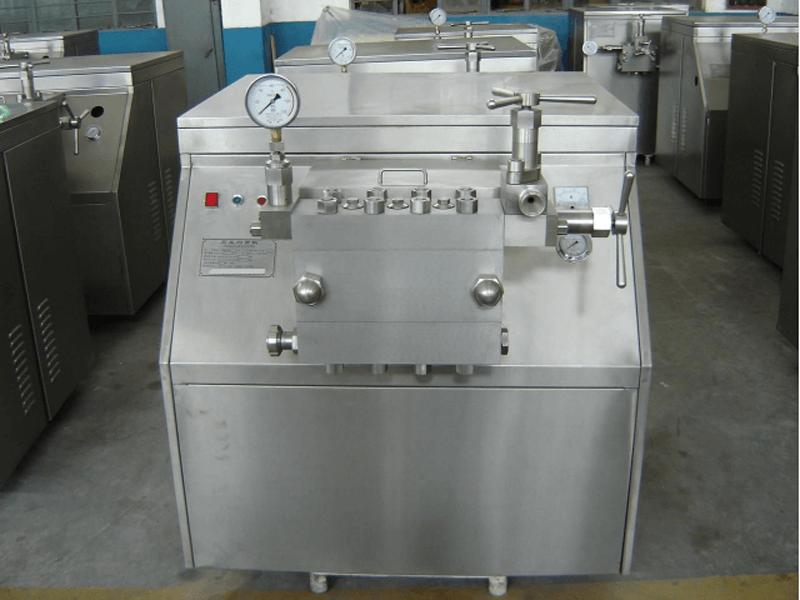

High-pressure homogenizer is the common equipment of preparing thin liquid—emulsified liquid or liquid—solid dispersion, which is widely used in scientific research area and for producer of industries of foodstuff, chemical engineering, pharmacy, light industry, biological project and so on.
High-pressure homogenizer is the common equipment of preparing thin liquid—emulsified liquid or liquid—solid dispersion, which is widely used in scientific research area and for producer of industries of foodstuff, chemical engineering, pharmacy, light industry, biological project and so on.
In this machine, all part material contacting to materiel have high anti-wearing and fine anti-corrosion and won’t bring ill effectiveness to materiel. High-pressure homogenizer has features of small ground space, high efficiency, large energy, fast reaction, low charge of movement and etc compared to other homogenizer equipments. The function of homogenizer is mainly at homogenization. On the machine with double valve, materiel need to getting across homogenous valve for only one time, the materiel will be homogenized more than four times, and some can achieve 6-8 times. Thereby, under the same pressure, it improved homogenous effect greatly. The materiel process is carried out in homogenous valve. When materiel enter valve of adjusting clearance under high-handed, the materiel obtain highest flowing speed（200－300m/s），and formed huge pressure for falling in homogenous valve. Under effect of cavity effect, flowing and cutting, processing original rough calpis or suspension to liquid-emulsification or liquid-solid dispersion of remoteness dispersion, well-distributed and steady. The products getting across high-handed homogenized have many advantageous, they have high stability, and they can improve products saving quality, tenor and level and make products be peak of high quality and optimized.
Main features：
1、 Saving energy, high efficiency, actual throughout bigger than nameplate showing, and pressure rising flowing unchanging;
2、Crushing granularity Ф0.1-2μm，average Ф≤1μm；
3、Pressure stable, pressure gauge showing swing within P<2Mpa；
4、Gap block adopted special type of metal material, hard wearing, using for long time, all valves and plunger piston adopted special type material producing, durable, low cost, save worry, save money;
5、Honeybee material，working temperature≤150℃ is allowed；
6、Part contacting to materiel all to be unbearable strong acid and alkali, such as HNO3，NaOH≤5%，CIP sterilizing time is not limited；
7、 The machine is smooth and reliable, it needs the first time of oil changing after operating for 750 hours, and then oil changing only one time each year in the future(according to three classes per day); low noise, driving noise is lower than electric motor noise.
QUALITY ASSURANCE
Every CGF-series machine ships with full certification documentation.
BUYER FAQ
Common questions from buyers about Taike Machinery's products, ordering process, and after-sales support.
Submit your requirements via the inquiry form on this page or contact us directly by phone, WhatsApp, or e-mail. Please include your target production capacity (BPH or bottles/hour), container type and size, beverage category, and any special requirements. Our sales team will review your brief and reply with a preliminary machine recommendation and indicative pricing.
Taike machines are CE-marked in compliance with the EU Machinery Directive and manufactured under ISO 9001 quality management. CE certification covers electrical safety, mechanical safety, and applicable pressure equipment regulations — meeting import requirements for Europe, the Middle East, Southeast Asia, and many other regulated markets. Documentation packs are provided with each shipment.
Yes. All Taike machines support custom configuration including output capacity, container format (bottle diameter, height, neck finish), filling head count, local voltage/frequency, material grade (SUS304 or SUS316L), and optional features such as nitrogen flushing, weight-type filling, or clean-room enclosures. Customisation scope and costs are confirmed during the quotation stage.
Lead time depends on machine type and configuration. Standard models typically require 45–75 working days from deposit receipt to factory completion, subject to the current production schedule. Custom or large-scale complete-line projects may require a longer manufacturing window. We conduct a pre-shipment run-off test before packing and provide video documentation of the test run for your review.
On-site installation and commissioning by Taike engineers is available as a paid service. Our technicians travel to your facility for machine installation, trial production run, and operator training before formal handover. Remote video commissioning support — where our engineers guide your local team via live video call — is also available as a lower-cost alternative. Terms and costs are defined in the sales contract.
Each machine ships with a standard warranty covering manufacturing defects and is accompanied by a spare-parts kit for critical wear components. Technical support is available during China business hours by phone, WhatsApp, or e-mail. Our engineering team typically aims to respond to fault queries within 2 business days. A recommended spare-parts list for long-term operation is provided with all shipments, and spare parts can be ordered directly from our factory at any time.
AFTER-SALES SUPPORT
A filling machine is a long-term production asset. Taike's service programme covers the full lifecycle from installation through to long-term spare-parts supply, ensuring your line runs at rated capacity from day one.
Taike engineers travel to your facility to complete mechanical installation, utility connection, trial production run, and formal handover. Available for projects worldwide — costs and schedule confirmed at contract stage.
Where travel is restricted or timelines are tight, our engineers guide your local team through startup via live video call — covering mechanical checks, PLC parameter setup, and first-bottle production, with the same rigour as on-site.
A structured training programme covers HMI operation, filling adjustment, format changeover, CIP cleaning, and fault diagnosis. Complete operation and maintenance manuals are supplied in English and can be localised on request.
Every machine ships with a critical-wear spare-parts kit and a recommended long-term parts list. All spare parts — including filling valves, rinsing nozzles, and capping heads — can be ordered directly from Taike factory at any time after delivery.
Get a Machine Quote
Tell us your target BPH, bottle sizes, and beverage type. Our engineering team will respond within 24 hours with a detailed machine specification, footprint drawing, and transparent pricing.
We'll respond with a detailed machine proposal within 24 hours.
