Taike Machinery water filling machine production line

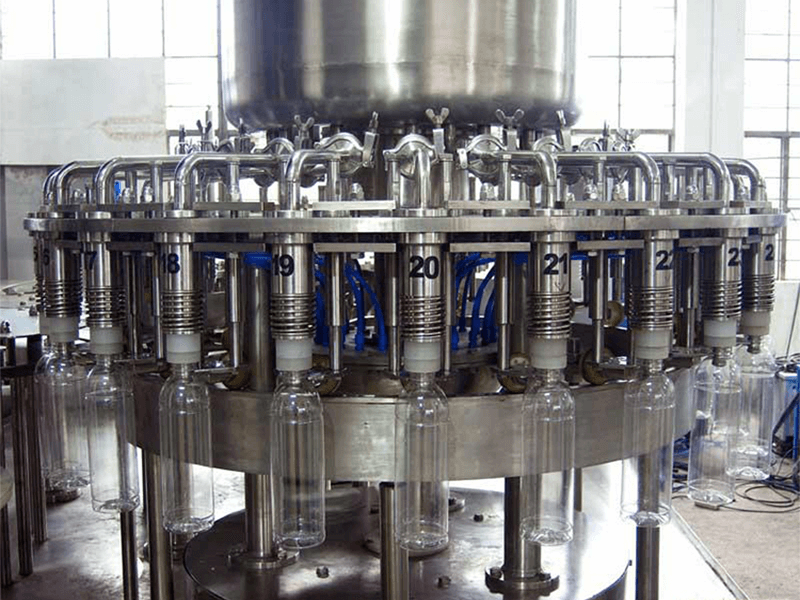

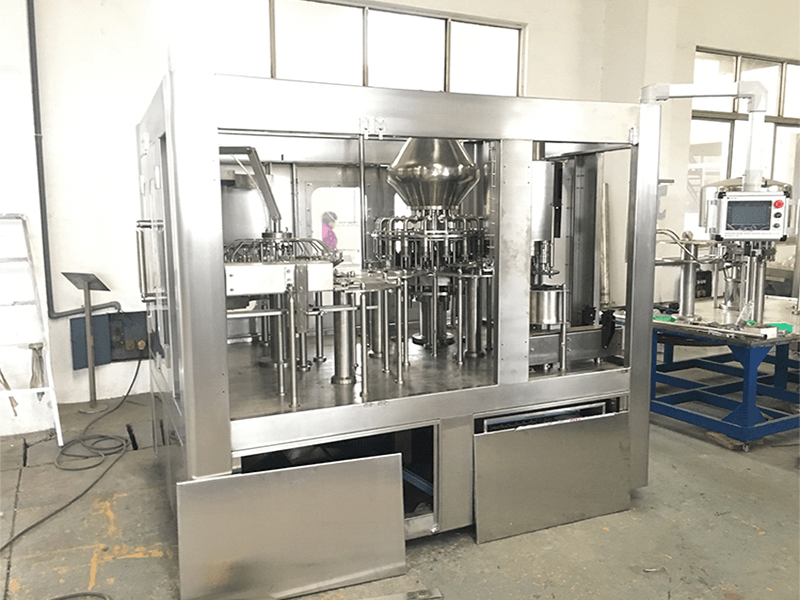

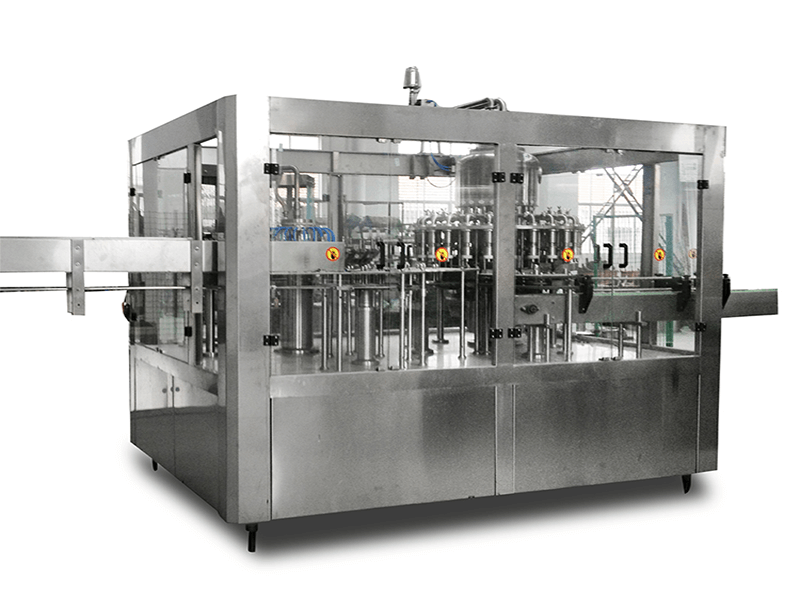

PE Bottle Filling Machine

This series of automatic pure water filling machine apply to the production of mineral water, purified water, flavor water and low alcoholic drinks, etc.

PE Bottle Filling Machine

This series of automatic pure water filling machine apply to the production of mineral water, purified water, flavor water and low alcoholic drinks, etc.

Application:

1. Filling hot temperature liquid into PE bottle;
2. Usage: juice, tea drinks etc;
3. Filling temperature will be around 85-90 degree centigrade;

Features:

1. Integrates bottle washing, water filling and capping into one monoblock;
2. The three processes are carried out full automatically.
3. It is used in the hot filling of juice and tea beverage.
4. It is equipped with perfect temperature control system, reverse-flow system, automatic cleaning system and control program.

Machine Details:

Washing Part–

  1. into bottle way is air conveyor direct connection with Bottle dial.
  2. All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
  3. 3.304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
  4. 304/316 stainless steel washing pump make the machine more durable.

Filling Part–

  1. During filling juice , we will make a cover installed on the filling valve, avoiding the fruit pulp return inside reflux pipe to block the pipe.
  2. Filling valve and bottle lifter uses adopts German Igus bearings which are corrosion-resistant and maintenance-free.
  3. By install CIP cleaning cups, the filling machine can realize online CIP cleaning
  4.  During filling process, there is no reflux of product, avoiding blockage of product.

Capping Part–

  1. Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
  2. All 304/316 stainless steel construction
  3. No bottle no capping
  4. Automatic stop when lack of bottle
  5. Capping effect is stable and reliable, Defective rate ≤0.2

PLC–

  1. High definition screen ,more clearly operation page.
  2. Simple operation.
  3. No professional training required to operate the machine.

Product Parameter:

QUALITY ASSURANCE

International Quality Certifications

Every CGF-series machine ships with full certification documentation.

CE Marking — EU Machinery & EMC Directive
CE Marking EU Machinery & EMC Directive
ISO 9001:2015 — Quality Management System
ISO 9001:2015 Quality Management System
SGS Audited — Factory & Quality Inspection
SGS Audited Factory & Quality Inspection
Bureau Veritas — International Factory Verification
Bureau Veritas International Factory Verification

BUYER FAQ

Frequently Asked Questions

Common questions from buyers about Taike Machinery's products, ordering process, and after-sales support.

How do I request a quotation from Taike?

Submit your requirements via the inquiry form on this page or contact us directly by phone, WhatsApp, or e-mail. Please include your target production capacity (BPH or bottles/hour), container type and size, beverage category, and any special requirements. Our sales team will review your brief and reply with a preliminary machine recommendation and indicative pricing.

What certifications do Taike machines carry?

Taike machines are CE-marked in compliance with the EU Machinery Directive and manufactured under ISO 9001 quality management. CE certification covers electrical safety, mechanical safety, and applicable pressure equipment regulations — meeting import requirements for Europe, the Middle East, Southeast Asia, and many other regulated markets. Documentation packs are provided with each shipment.

Can machines be customised to our specific production requirements?

Yes. All Taike machines support custom configuration including output capacity, container format (bottle diameter, height, neck finish), filling head count, local voltage/frequency, material grade (SUS304 or SUS316L), and optional features such as nitrogen flushing, weight-type filling, or clean-room enclosures. Customisation scope and costs are confirmed during the quotation stage.

What is the typical lead time from order to delivery?

Lead time depends on machine type and configuration. Standard models typically require 45–75 working days from deposit receipt to factory completion, subject to the current production schedule. Custom or large-scale complete-line projects may require a longer manufacturing window. We conduct a pre-shipment run-off test before packing and provide video documentation of the test run for your review.

Do you provide on-site installation and commissioning?

On-site installation and commissioning by Taike engineers is available as a paid service. Our technicians travel to your facility for machine installation, trial production run, and operator training before formal handover. Remote video commissioning support — where our engineers guide your local team via live video call — is also available as a lower-cost alternative. Terms and costs are defined in the sales contract.

What after-sales support and spare parts service do you offer?

Each machine ships with a standard warranty covering manufacturing defects and is accompanied by a spare-parts kit for critical wear components. Technical support is available during China business hours by phone, WhatsApp, or e-mail. Our engineering team typically aims to respond to fault queries within 2 business days. A recommended spare-parts list for long-term operation is provided with all shipments, and spare parts can be ordered directly from our factory at any time.

AFTER-SALES SUPPORT

From Factory to Full Production —We're With You Every Step

A filling machine is a long-term production asset. Taike's service programme covers the full lifecycle from installation through to long-term spare-parts supply, ensuring your line runs at rated capacity from day one.

01

On-site Installation & Commissioning

Taike engineers travel to your facility to complete mechanical installation, utility connection, trial production run, and formal handover. Available for projects worldwide — costs and schedule confirmed at contract stage.

02

Remote Video Commissioning

Where travel is restricted or timelines are tight, our engineers guide your local team through startup via live video call — covering mechanical checks, PLC parameter setup, and first-bottle production, with the same rigour as on-site.

03

Operator Training & Documentation

A structured training programme covers HMI operation, filling adjustment, format changeover, CIP cleaning, and fault diagnosis. Complete operation and maintenance manuals are supplied in English and can be localised on request.

04

Spare Parts & Long-term Supply

Every machine ships with a critical-wear spare-parts kit and a recommended long-term parts list. All spare parts — including filling valves, rinsing nozzles, and capping heads — can be ordered directly from Taike factory at any time after delivery.

Get a Machine Quote

Request a Filling Line Quote

Tell us your target BPH, bottle sizes, and beverage type. Our engineering team will respond within 24 hours with a detailed machine specification, footprint drawing, and transparent pricing.
