Ultrafiltration System
Mineral Water Treatment System
Mineral water treatment System generally includes pretreatment system, Ultra filtration, post-treatment system, cleaning system and electrical control system, etc.
View Product

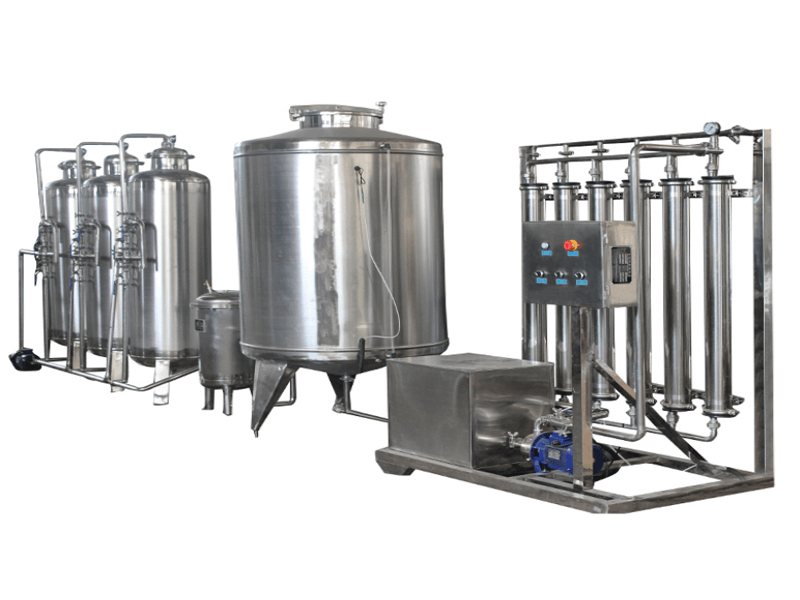

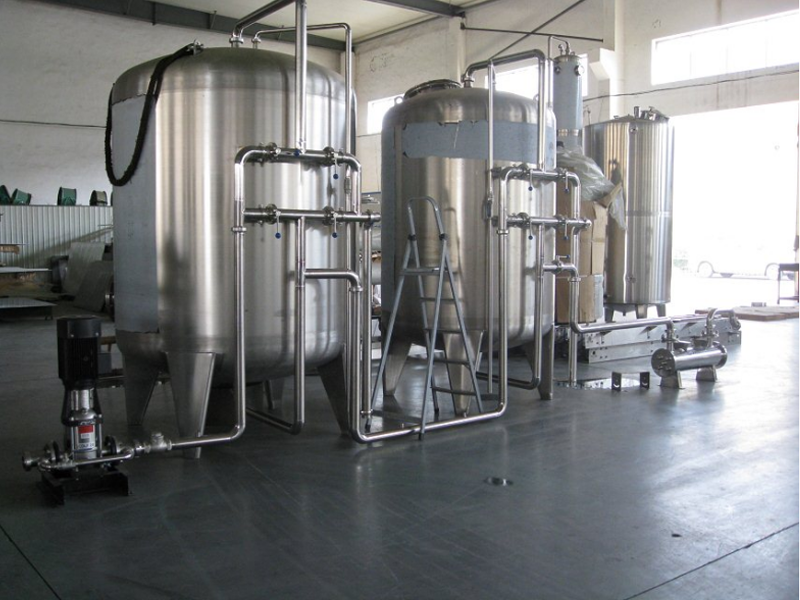

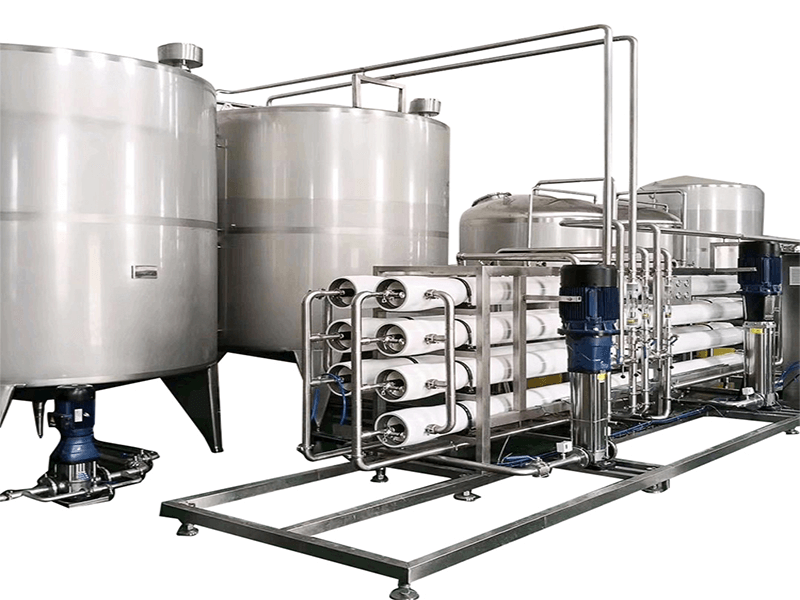

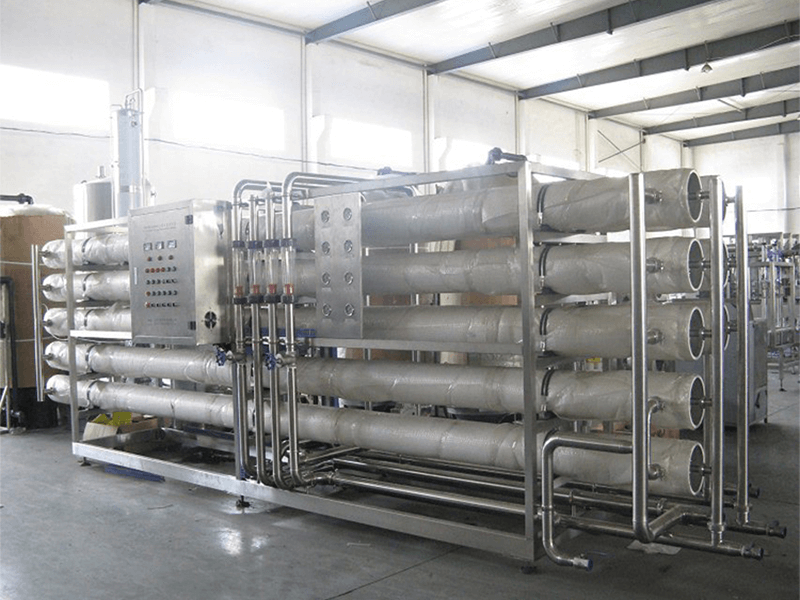

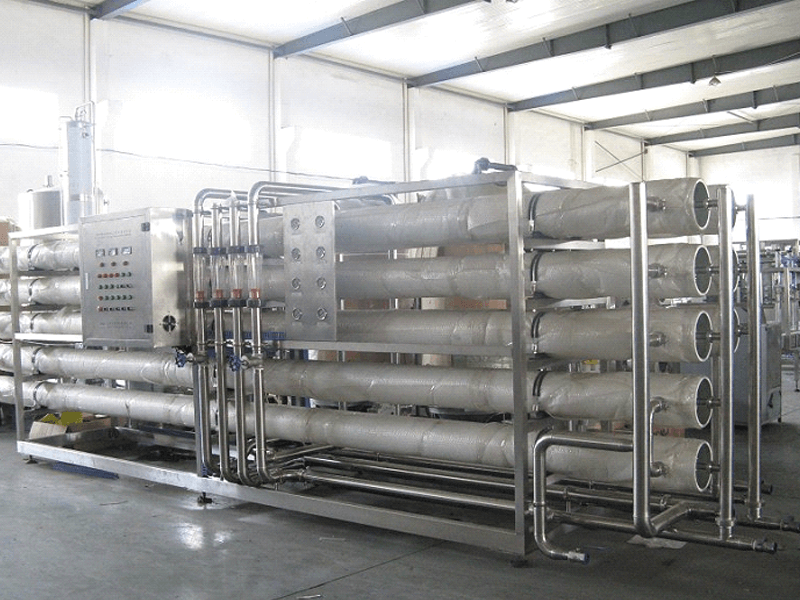

Complete RO water treatment system generally includes pretreatment system, RO unit, post-treatment system, cleaning system and electrical control system, etc.
Complete RO water treatment system generally includes pretreatment system, RO unit, post-treatment system, cleaning system and electrical control system, etc.
The pretreatment system generally includes raw water pump, dosing device, quartz sand filter, activated carbon filter, precision filter and so on. Its main function is to reduce the pollution index of raw water and other impurities such as residual chlorine to achieve the reverse osmosis inlet water requirements.
RO series reverse osmosis device is an equipment to purify the saline water with the action of the pressure difference of semi permeable. It is called reverse osmosis; as it is counter to natural penetration direction .Different materials have different osmotic pressure. The reverse osmosis method to adopt target osmotic pressures is used to obtain the purpose to separate, extract, purify and condense；
More than 97% soluble salts and 99% glues, microbe, particulate and organic substance and etc can be removed with the reverse osmosis.
It becomes the most idea equipment for the modern program of pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance.
The post-treatment system is an added configuration in the case that reverse osmosis cannot meet the requirements of effluent. Mainly including UV sterilizer, Ozone generator, Ozone mixer, one of the or a variety of equipment.
The cleaning system mainly consists of cleaning water tank, water pump and precision filter. When the reverse osmosis system is contaminated and the effluent index cannot meet the requirements, the reverse osmosis system needs to be cleaned to restore its efficiency.
The electrical control system is used to control the normal operation of the whole reverse osmosis system. Including instrument panel, control panel, all kinds of electrical protection, electrical control cabinet, etc.
QUALITY ASSURANCE
Every CGF-series machine ships with full certification documentation.
BUYER FAQ
Common questions from buyers about Taike Machinery's products, ordering process, and after-sales support.
Submit your requirements via the inquiry form on this page or contact us directly by phone, WhatsApp, or e-mail. Please include your target production capacity (BPH or bottles/hour), container type and size, beverage category, and any special requirements. Our sales team will review your brief and reply with a preliminary machine recommendation and indicative pricing.
Taike machines are CE-marked in compliance with the EU Machinery Directive and manufactured under ISO 9001 quality management. CE certification covers electrical safety, mechanical safety, and applicable pressure equipment regulations — meeting import requirements for Europe, the Middle East, Southeast Asia, and many other regulated markets. Documentation packs are provided with each shipment.
Yes. All Taike machines support custom configuration including output capacity, container format (bottle diameter, height, neck finish), filling head count, local voltage/frequency, material grade (SUS304 or SUS316L), and optional features such as nitrogen flushing, weight-type filling, or clean-room enclosures. Customisation scope and costs are confirmed during the quotation stage.
Lead time depends on machine type and configuration. Standard models typically require 45–75 working days from deposit receipt to factory completion, subject to the current production schedule. Custom or large-scale complete-line projects may require a longer manufacturing window. We conduct a pre-shipment run-off test before packing and provide video documentation of the test run for your review.
On-site installation and commissioning by Taike engineers is available as a paid service. Our technicians travel to your facility for machine installation, trial production run, and operator training before formal handover. Remote video commissioning support — where our engineers guide your local team via live video call — is also available as a lower-cost alternative. Terms and costs are defined in the sales contract.
Each machine ships with a standard warranty covering manufacturing defects and is accompanied by a spare-parts kit for critical wear components. Technical support is available during China business hours by phone, WhatsApp, or e-mail. Our engineering team typically aims to respond to fault queries within 2 business days. A recommended spare-parts list for long-term operation is provided with all shipments, and spare parts can be ordered directly from our factory at any time.
AFTER-SALES SUPPORT
A filling machine is a long-term production asset. Taike's service programme covers the full lifecycle from installation through to long-term spare-parts supply, ensuring your line runs at rated capacity from day one.
Taike engineers travel to your facility to complete mechanical installation, utility connection, trial production run, and formal handover. Available for projects worldwide — costs and schedule confirmed at contract stage.
Where travel is restricted or timelines are tight, our engineers guide your local team through startup via live video call — covering mechanical checks, PLC parameter setup, and first-bottle production, with the same rigour as on-site.
A structured training programme covers HMI operation, filling adjustment, format changeover, CIP cleaning, and fault diagnosis. Complete operation and maintenance manuals are supplied in English and can be localised on request.
Every machine ships with a critical-wear spare-parts kit and a recommended long-term parts list. All spare parts — including filling valves, rinsing nozzles, and capping heads — can be ordered directly from Taike factory at any time after delivery.
